While our core expertise is molding, we offer flexible solutions. Clients can free-issue the inserts to us, or we can manage the entire supply chain, sourcing high-quality inserts from our trusted partners on your behalf.

Knurling is a pattern of straight or angled ridges pressed into a metal insert. This rough texture creates a strong mechanical interlock when the plastic flows into it, dramatically increasing resistance to both pull-out and torque.

We design the mold with precision shut-off features. This means the steel of the mold seals tightly against the insert, creating a barrier that prevents plastic from flowing into areas like threads or other critical features.

For robust inserts like metal and ceramics, this is rarely an issue. For sensitive inserts like electronics or magnets, we use specialized low-temperature molding resins and carefully control injection speed and pressure to prevent any thermal damage.

While the initial tooling can be more complex, insert molding is often more cost-effective in the long run. It eliminates the labor and time of post-molding assembly, reduces the number of SKUs, and results in a stronger, more reliable final product.

Flashing is a thin layer of unwanted plastic that seeps out between the mold and the insert. It’s caused by an imperfect seal and is something we prevent through high-precision mold making and rigorous process control.

In insert molding, a solid, pre-made part (often metal) is placed in the mold first. In overmolding, a pre-molded plastic part (the substrate) is placed in a second mold to have another plastic (often soft) molded onto it.

Yes, vertical presses are often ideal for insert molding. They allow gravity to help hold the insert securely in the bottom half of the mold, making manual or robotic placement easier and more reliable.

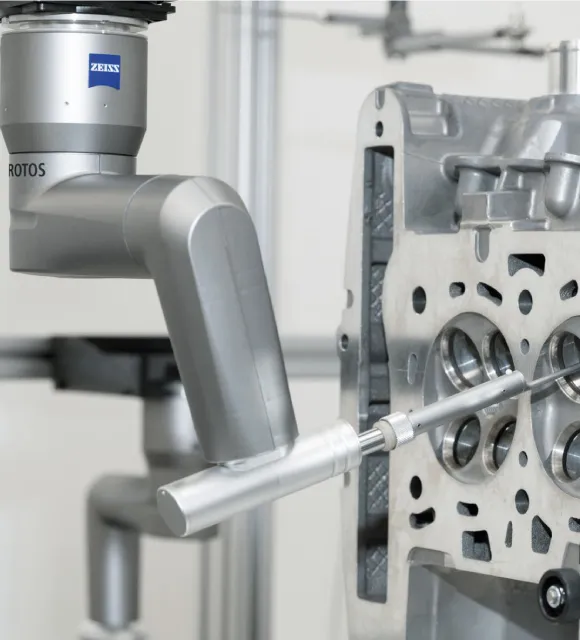

We achieve precision through a combination of robust mold design with custom nests or pins to hold the insert, and automated robotic placement. For final verification, our CMM machines confirm the position of the insert on the final part.

Glass-filled plastics like Nylon (PA) and PBT are excellent choices for molding over steel inserts. The glass fibers reduce the plastic’s overall shrinkage rate, minimizing stress on the insert as the part cools and leading to a more stable assembly.

Absolutely, this is a classic application of insert molding. We can mold a durable and ergonomic plastic handle directly onto a pre-made knife blade or any other type of metal tool shaft.

The achievable pull-out force depends entirely on the design of the insert and part (e.g., knurling, geometry, plastic material). As part of our DFM process, we can estimate the performance and conduct physical pull-out tests to validate the final bond strength.

Yes, but it requires special care. We must use lower molding temperatures to avoid demagnetizing the insert (exceeding its Curie temperature). We select appropriate low-temperature plastics and control the process carefully.

Our standard lead time for a production-quality insert mold is typically between 3 and 5 weeks. This is often faster than industry averages because we specialize in efficient tool design and fabrication.
